FEATURE INTRODUCTION
1. Minimalist design, exquisite appearance, whether on the front, side, or back, the entire product is beautiful
2. APP wireless publishing, one click content transmission, can be uploaded on both mobile phones and tablets

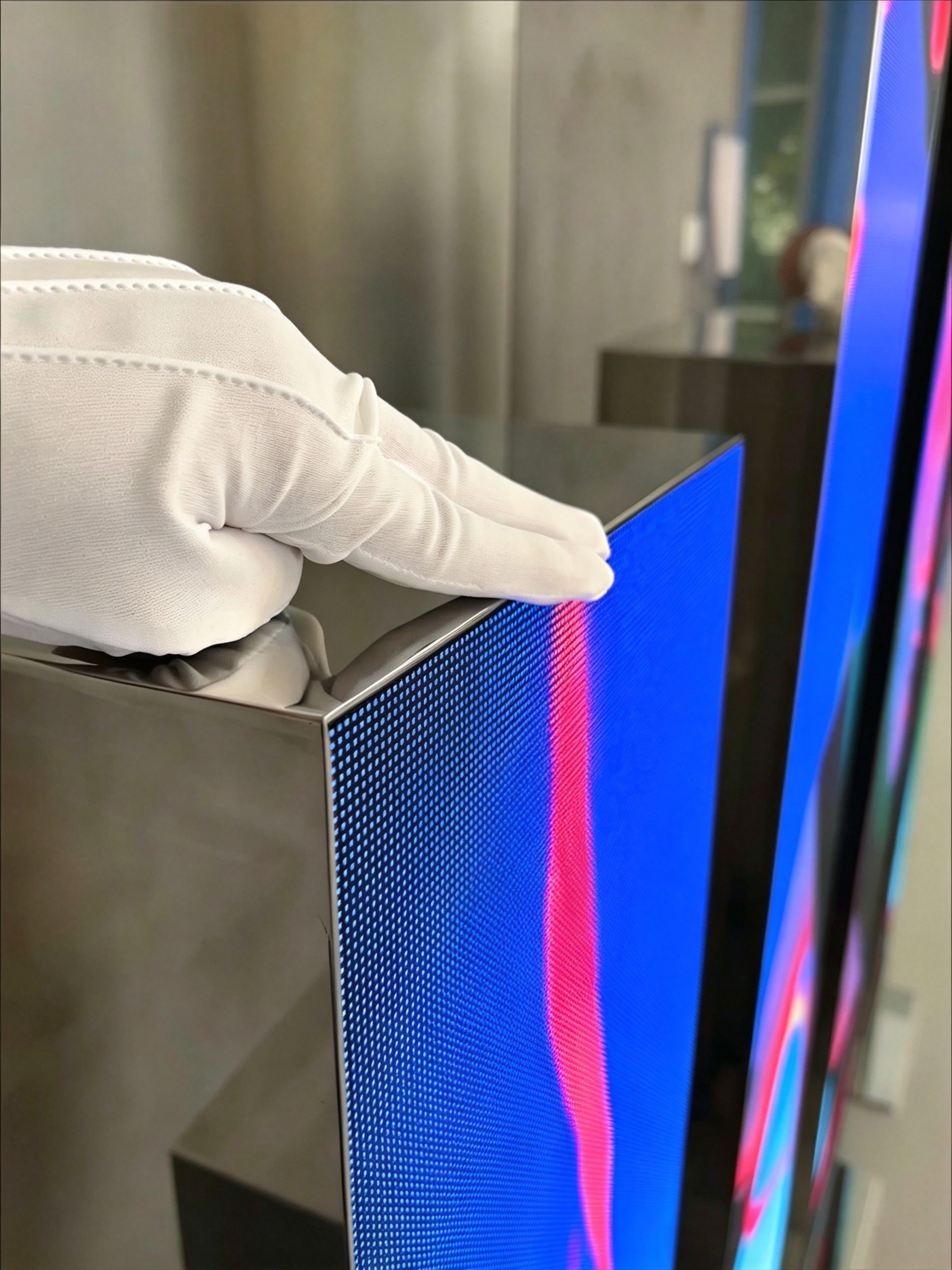

3. The SMD lamp beads adopt GOB technology, which is scratch resistant, anti drop, and surface splash resistant for more stable use
4. The frame is integrally formed without solder joints and can be adjusted in position. With car paint baking technology, innovative styling, and artistic installations, it creates a unique artwork

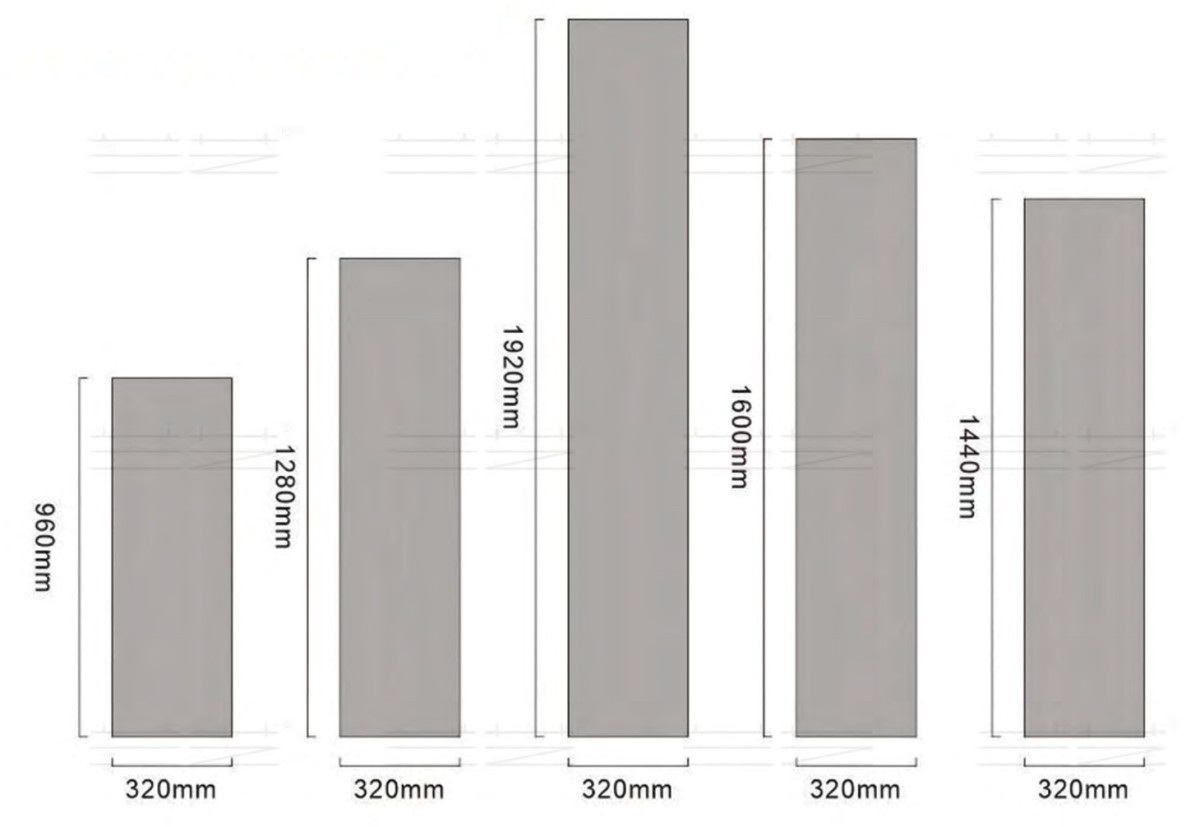

DIMENSION DRAWING

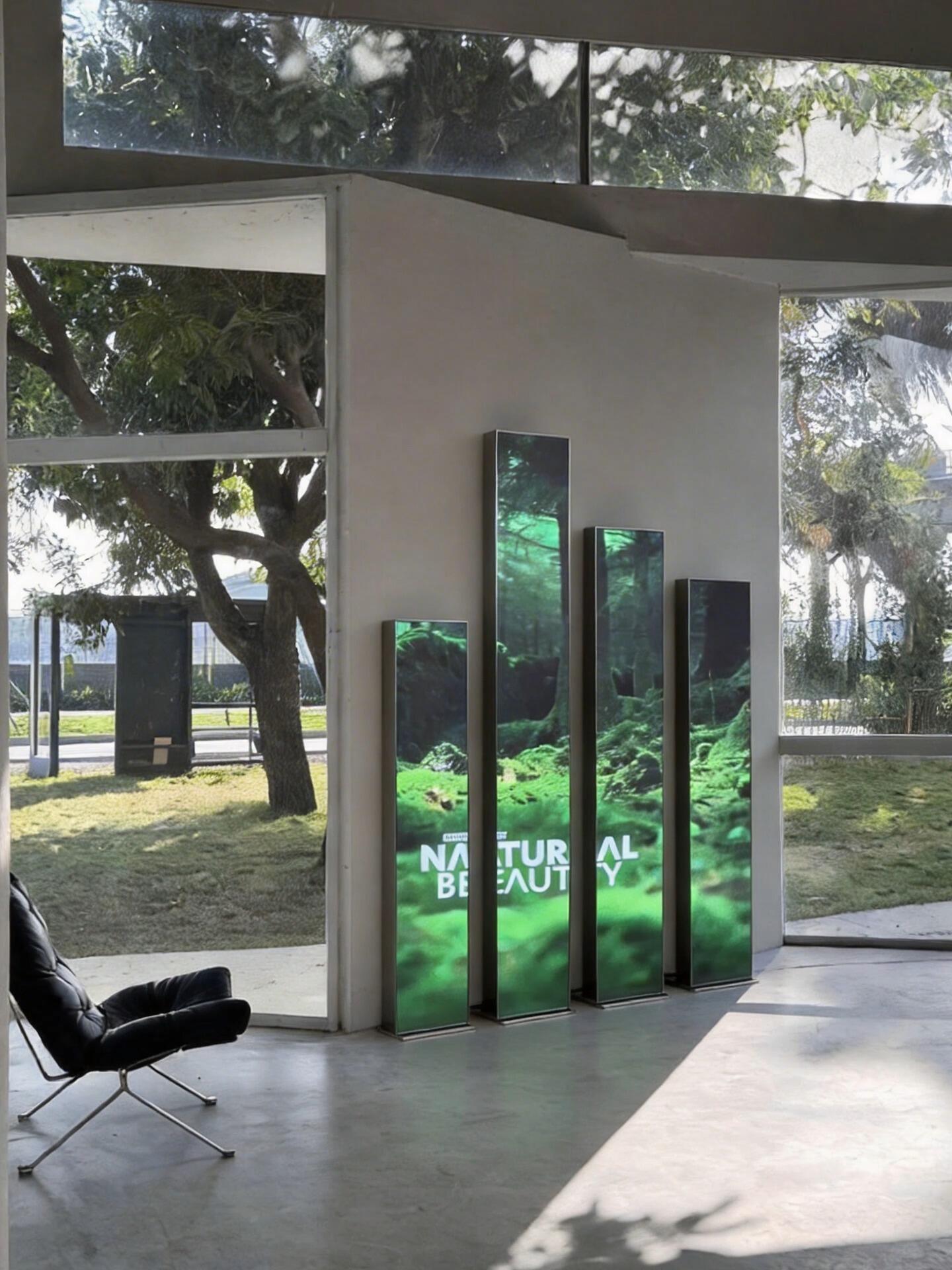

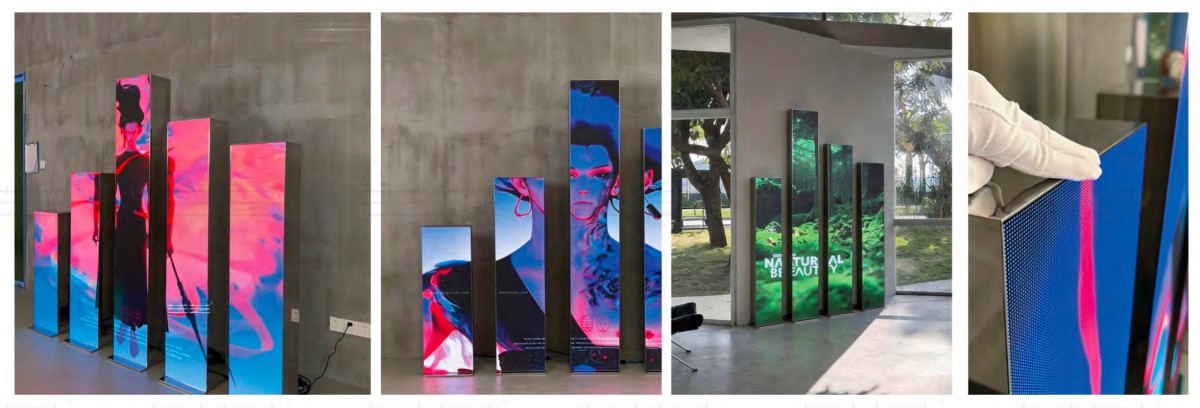

PRODUCT APPLICATION
PRODUCT PARAMETERS
*The above certification is for the certification of product components*
| Floor‑standing Matrix Display Specifications |
| Name | Pixel Pitch | Indoor P2.5 | Indoor P2 | Outdoor P4 | Outdoor P3 | Outdoor P2.5 |
| Display module parameter | Pixel spacing | 2.5mm | 2mm | 4mm | 3.076mm | 2.5mm |
| Protective technology | GOB | GOB | / | / | / |
| Dimensional Details | Overall resolution (W*H) | (384‑512*728‑848‑640‑576)*128 | (480‑640‑860‑960‑800‑720)*128 | (240‑320‑480‑640‑360)*128 | (320‑426‑640‑512‑832‑880)*128 | (384‑512‑768‑848‑640‑576)*128 |
| Display Size(W*H) | (960‑1280‑1600‑1920‑1440)*320mm | (960‑1280‑1600‑1920‑1440)*320mm | (960‑1280‑1600‑1920‑1440)*320mm | (960‑1280‑1600‑1920‑1440)*320mm | (960‑1280‑1600‑1920‑1440)*320mm |
| Wooden Box (L*W*H) | 1970*370*1610mm |
| Net weight (KG) | 1500KG |
| Gross Weight (KG) | 1800KG |
| Optical parameters | Brightness | ≥500cd/m² | ≥500cd/m² | ≥4500cd/m² | ≥4500cd/m² | ≥4500cd/m² |
| Power | Power supply | 110/210‑240V | 110/210‑240V | 110/210‑240V | 110/210‑240V | 110/210‑240V |
| Communication parameters | Expansion Capability | Not supported |
| Synchronous/Asynchronous | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) |
| Interface | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 |
| Speaker | Is there a built‑in speaker | NO |
| Audio | 3.5mm Jack Available |
| Performance processing | Refresh rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
| Typical lifespan | ≥100000 H | ≥100000 H | ≥100000 H | ≥100000 H | ≥100000 H |
| Using parameters | Working temperature | ‑20℃‑60℃ | ‑20℃‑60℃ | ‑20℃‑60℃ | ‑20℃‑60℃ | ‑20℃‑60℃ |
