FEATURE INTRODUCTION
1. Minimalist design, exquisite appearance, 360° circular display without dead corners on the front, side, and back
2. APP wireless publishing, one click content transmission, can be uploaded on both mobile phones and tablets
3. SMD lamp beads adopt GOB technology, which is scratch resistant, anti drop, surface splash resistant, seamless splicing, and more stable to use

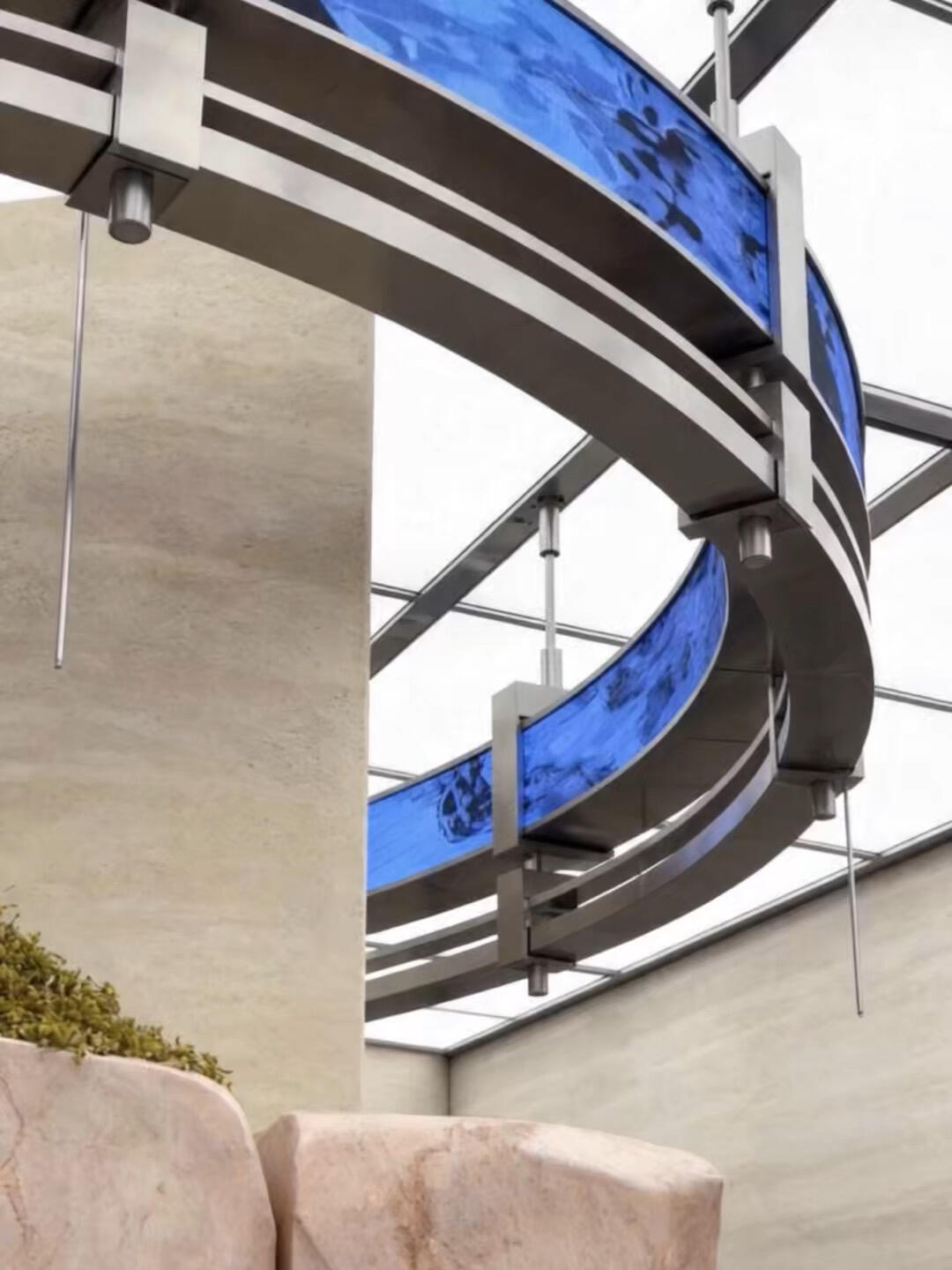

4. Stainless steel wire drawing process for the frame, 320° high‑definition module, suitable for irregular spaces such as cylinders, columns, and courtyards. The diameter and curvature can be customized according to the situation

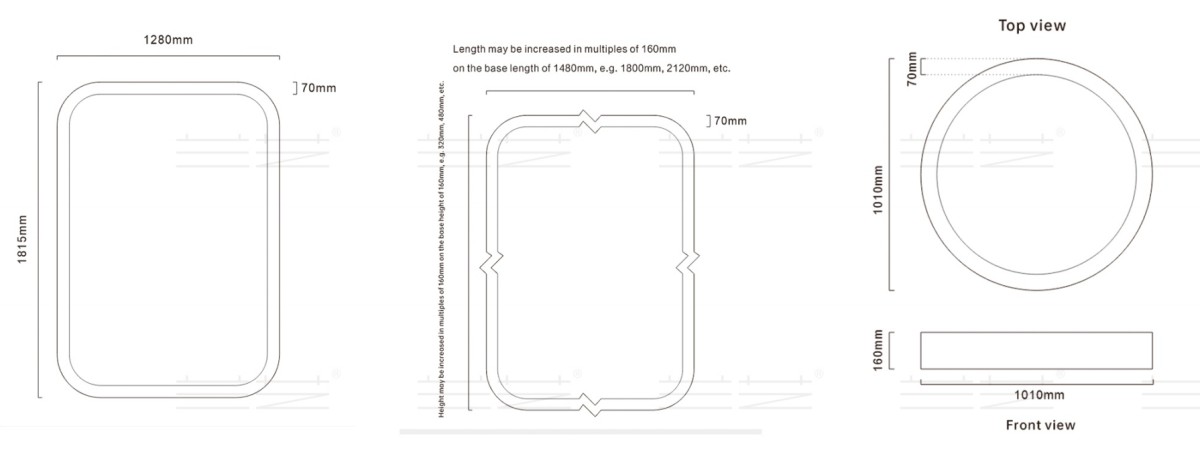

DIMENSION DRAWING

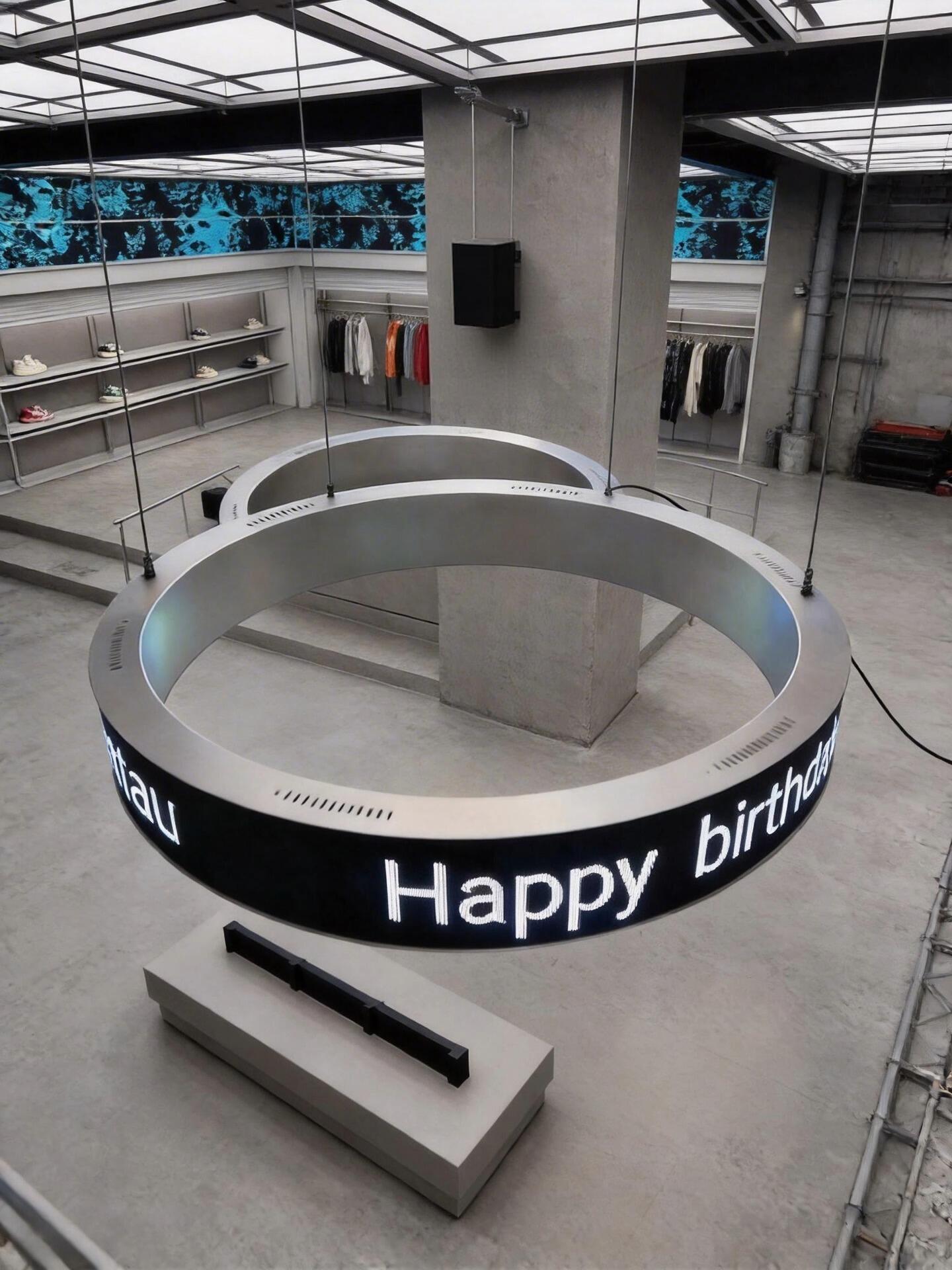

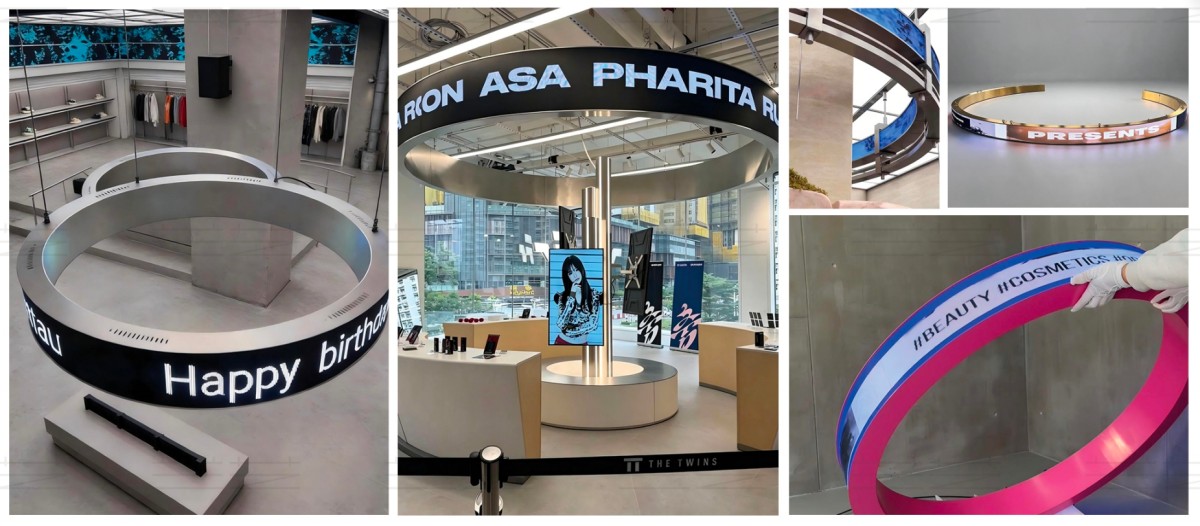

PRODUCT APPLICATION
PRODUCT PARAMETERS
*The above certification is for the certification of product components*
| Ring LED Display Specifications |
| Name | Pixel Pitch | Indoor P2.5 | Indoor P2 | Outdoor P4 | Outdoor P3 | Outdoor P2.5 |
| Display module parameter | Pixel spacing | 2.5mm | 2mm | 4mm | 3.076mm | 2.5mm |
| Protective technology | GOB | GOB | / | / | / |
| Dimensional Details | Overall resolution (W*H) | 2304*64 | 2880*80 | 1440*40 | 1920*53 | 2304*64 |
| Display Size(Dia*H) | 1010*160mm | 1010*160mm | 1010*160mm | 1010*160mm | 1010*160mm |
| Wooden Box (L*W*H) | 1060*1060*310mm |
| Net weight (KG) | 27KG |
| Gross Weight (KG) | 32.4KG |
| Optical parameters | Brightness | ≥500cd/m² | ≥500cd/m² | ≥4500cd/m² | ≥4500cd/m² | ≥4500cd/m² |
| Power | Power supply | 110/210‑240V | 110/210‑240V | 110/210‑240V | 110/210‑240V | 110/210‑240V |
| Communication parameters | Expansion Capability | Not Supported |
| Synchronous/Asynchronous | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) |
| Interface | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 |
| Speaker | Is there a built‑in speaker | NO |
| Audio | 3.5mm Jack Available |
| Performance processing | Refresh rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
| Typical lifespan | ≥100000 H | ≥100000 H | ≥100000 H | ≥100000 H | ≥100000 H |
| Using parameters | Working temperature | ‑20℃‑60℃ | ‑20℃‑60℃ | ‑20℃‑60℃ | ‑20℃‑60℃ | ‑20℃‑60℃ |
