FEATURE INTRODUCTION
1. Minimalist design, exquisite appearance, whether on the front, side, or back, the entire product is beautiful
2. APP wireless publishing, one click content transmission, can be uploaded on both mobile phones and tablets
3. The SMD lamp beads adopt GOB technology, which is scratch resistant, anti drop, surface splash resistant, and more stable to use
4. Sloping base design, hidden pulley, can play videos in six in one, reflective logo on the base, overall silver point, height 2300mm, floor to floor placement, can be changed at any time

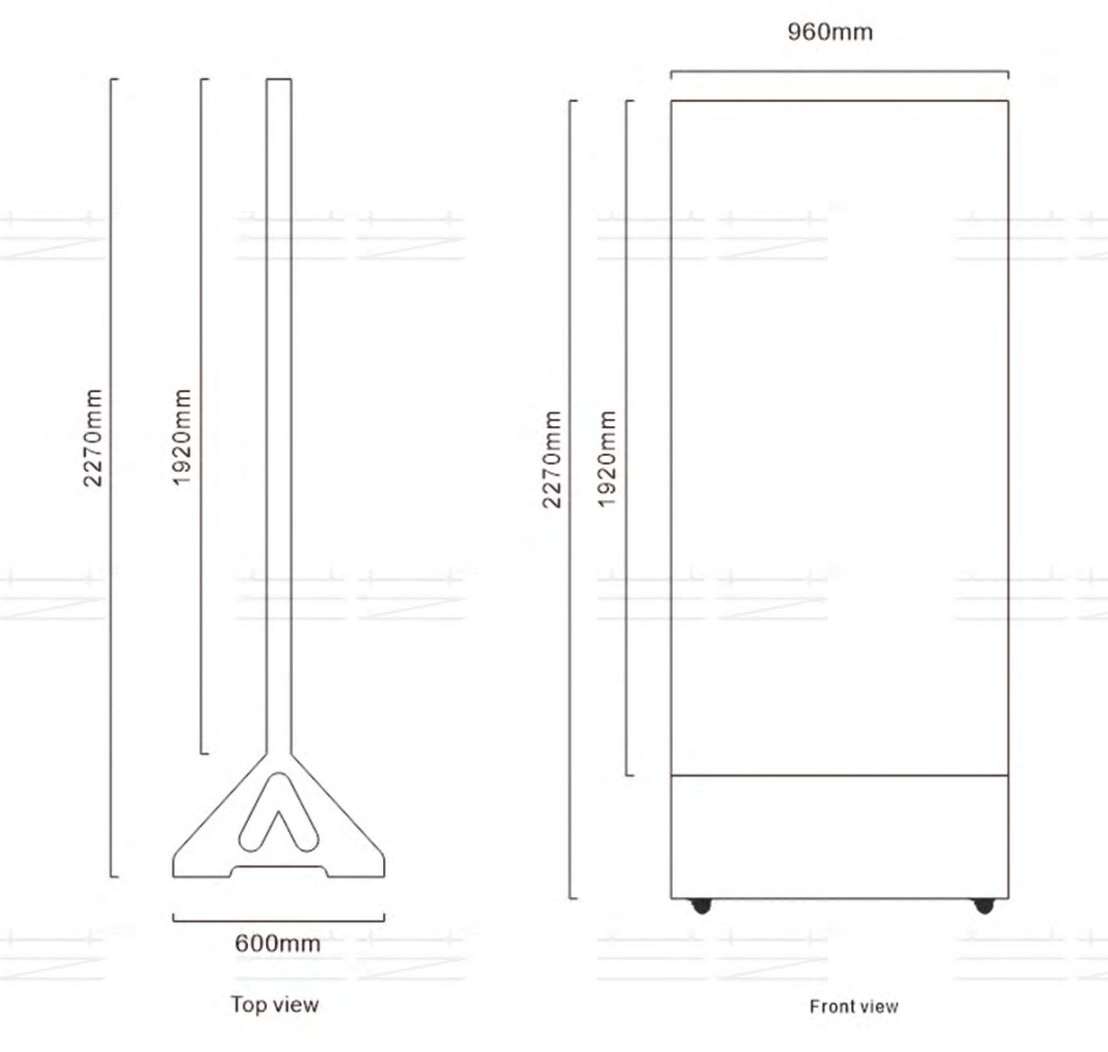

DIMENSION DRAWING
PRODUCT APPLICATION
PRODUCT PARAMETERS
*The above certification is for the certification of product components*
| 1920×640mm Standard Floor‑standing Display Specifications |
| Name | Pixel Pitch | Indoor P2.5 | Indoor P2 | Outdoor P4 | Outdoor P3 | Outdoor P2.5 |
| Display module parameter | Pixel spacing | 2.5mm | 2mm | 4mm | 3.076mm | 2.5mm |
| Protective technology | GOB | GOB | / | / | / |
| Dimensional Details | Overall resolution (W*H) | 768*256 | 960*320 | 480*160 | 640*213 | 768*256 |
| Display Size(W*H) | 1920*640mm | 1920*640mm | 1920*640mm | 1920*640mm | 1920*640mm |
| Wooden Box (L*W*H) | 650*1010*2420mm |
| Net weight (KG) | 90KG |
| Gross Weight (KG) | 108KG |
| Optical parameters | Brightness | ≥500cd/m² | ≥500cd/m² | ≥4500cd/m² | ≥4500cd/m² | ≥4500cd/m² |
| Power | Power supply | 110/210‑240V | 110/210‑240V | 110/210‑240V | 110/210‑240V | 110/210‑240V |
| Communication parameters | Expansion Capability | Supports Multiscreen Splicing & HDMI Cascading |
| Synchronous/Asynchronous | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) | WIFI/APP/4G SIM (optional) |
| Interface | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 | HDMI,USB,Ethernet CAT6 |
| Speaker | Is there a built‑in speaker | NO |
| Audio | 3.5mm Jack Available |
| Performance processing | Refresh rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
| Typical lifespan | ≥100000 H | ≥100000 H | ≥100000 H | ≥100000 H | ≥100000 H |
| Using parameters | Working temperature | ‑20℃‑60℃ | ‑20℃‑60℃ | ‑20℃‑60℃ | ‑20℃‑60℃ | ‑20℃‑60℃ |
